Neo80 Cu Keyboard Kit (Without Plate)

Details

Plate not included yet, please add it to cart here and checkout together

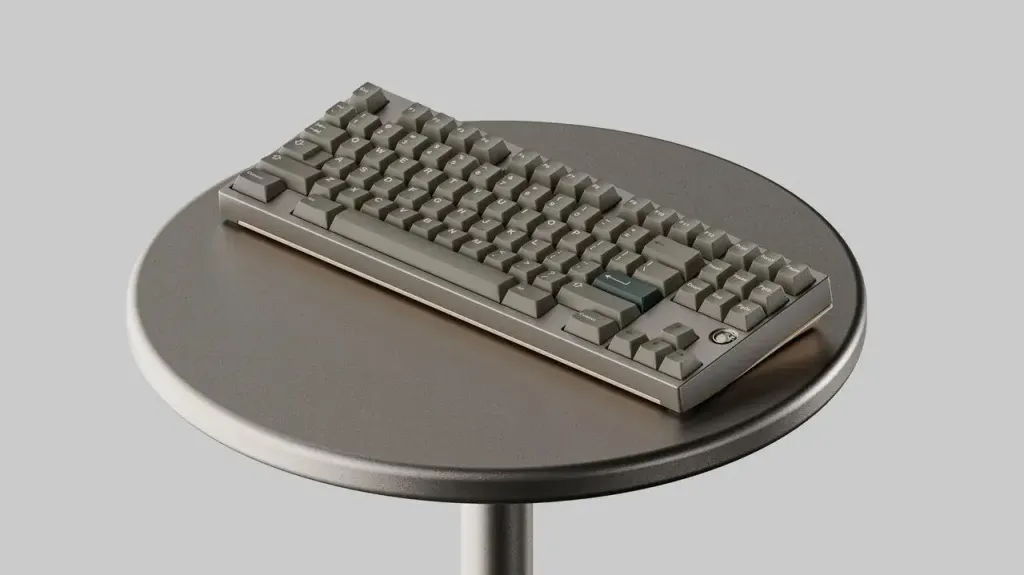

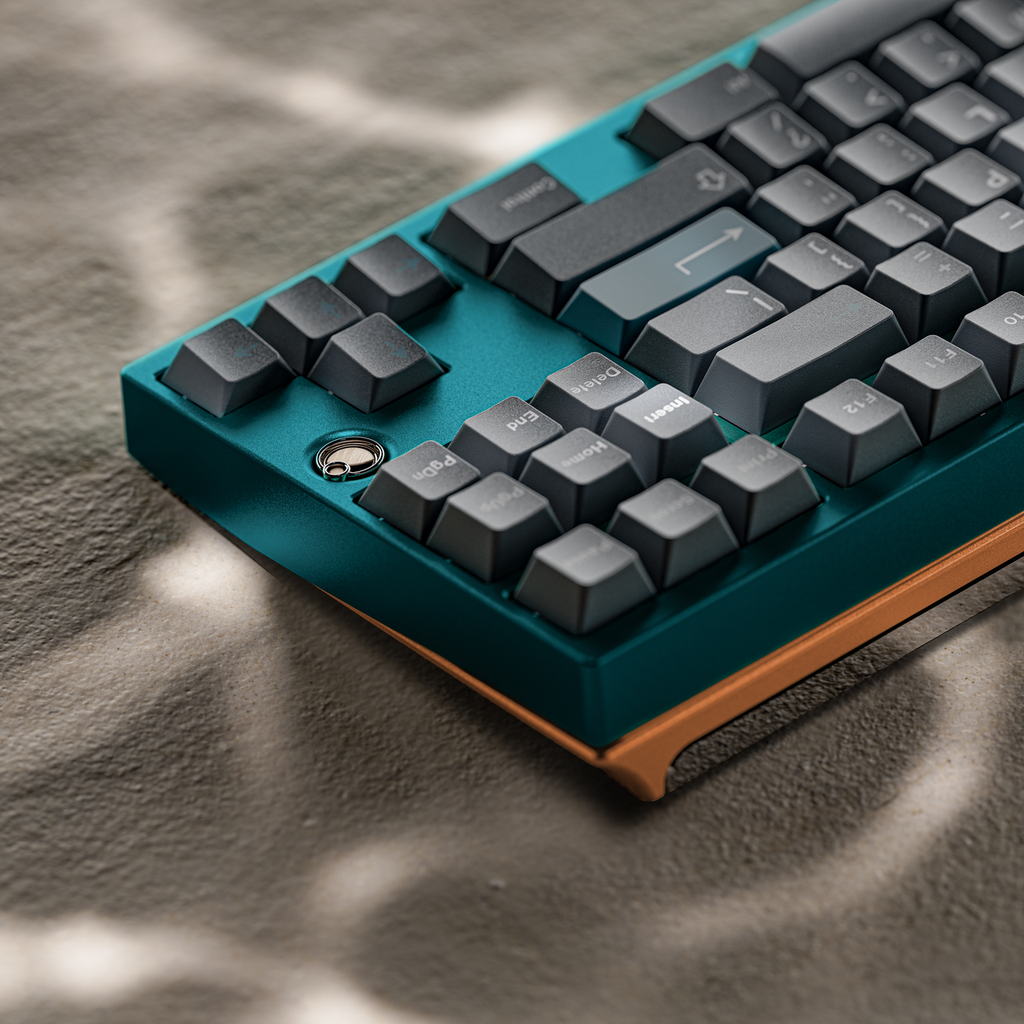

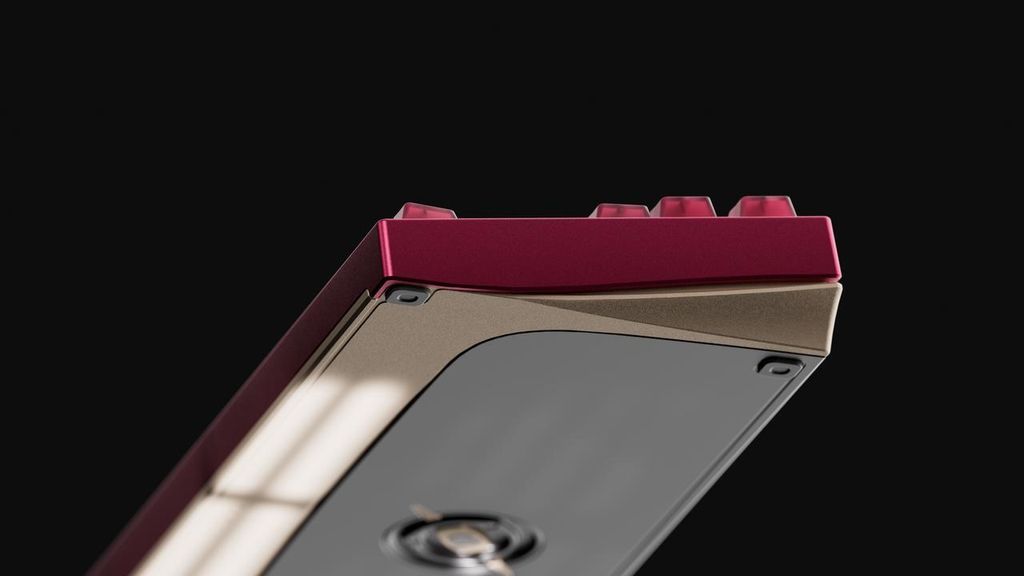

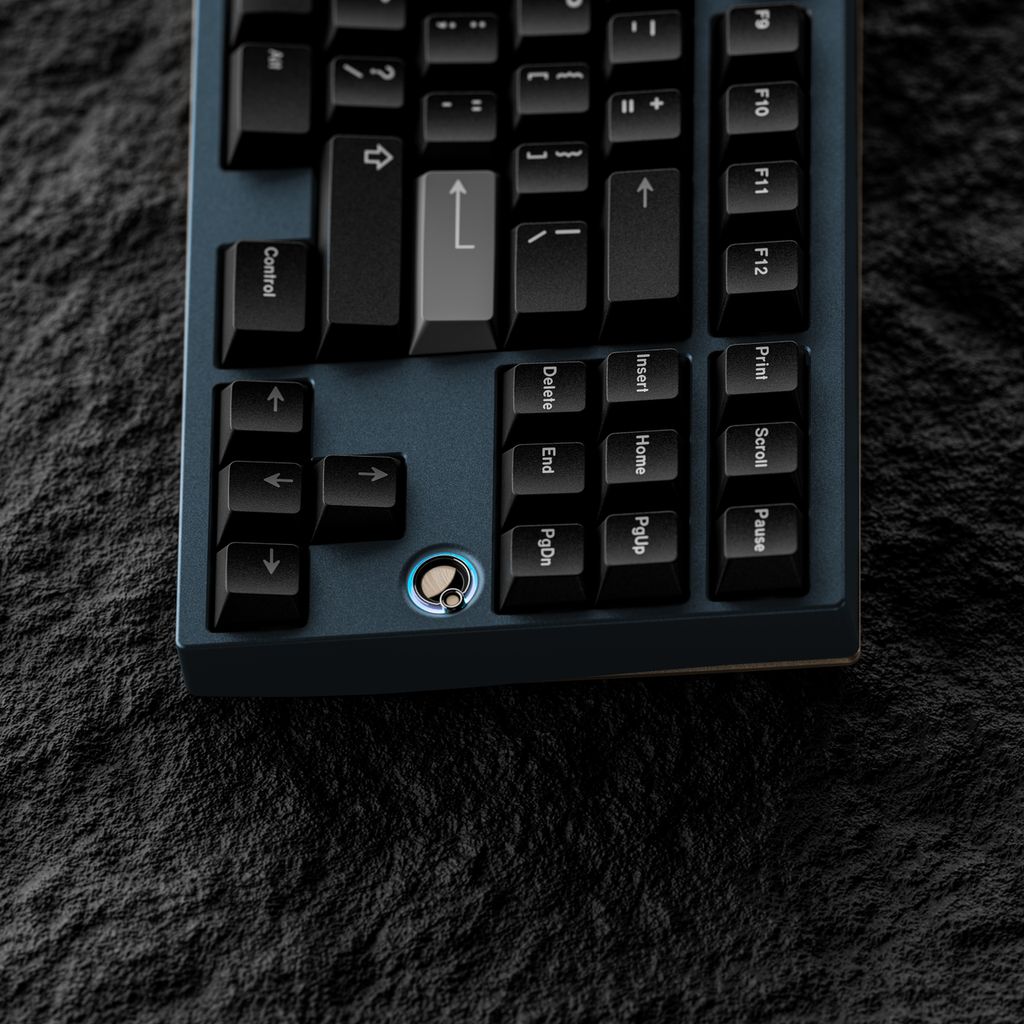

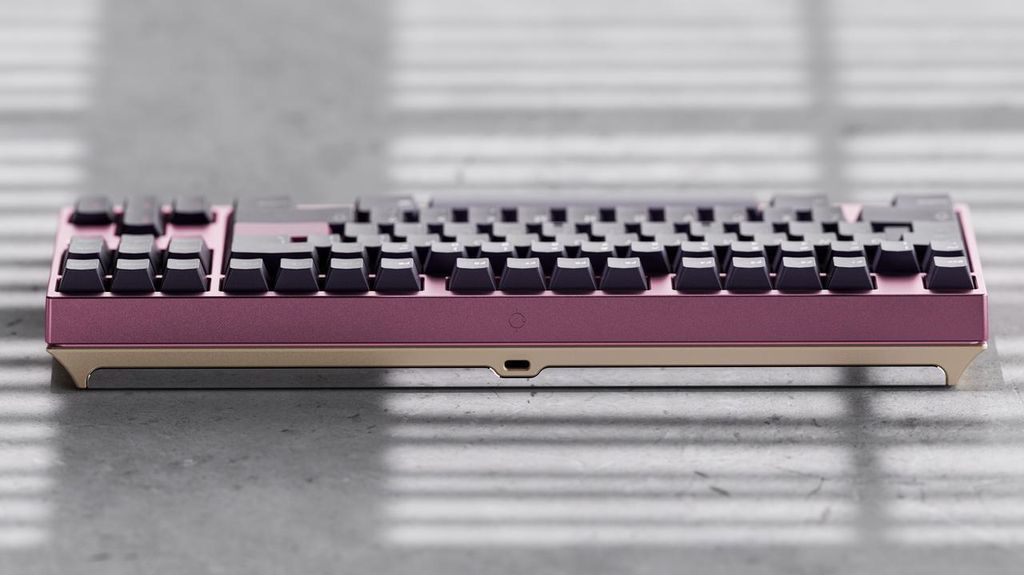

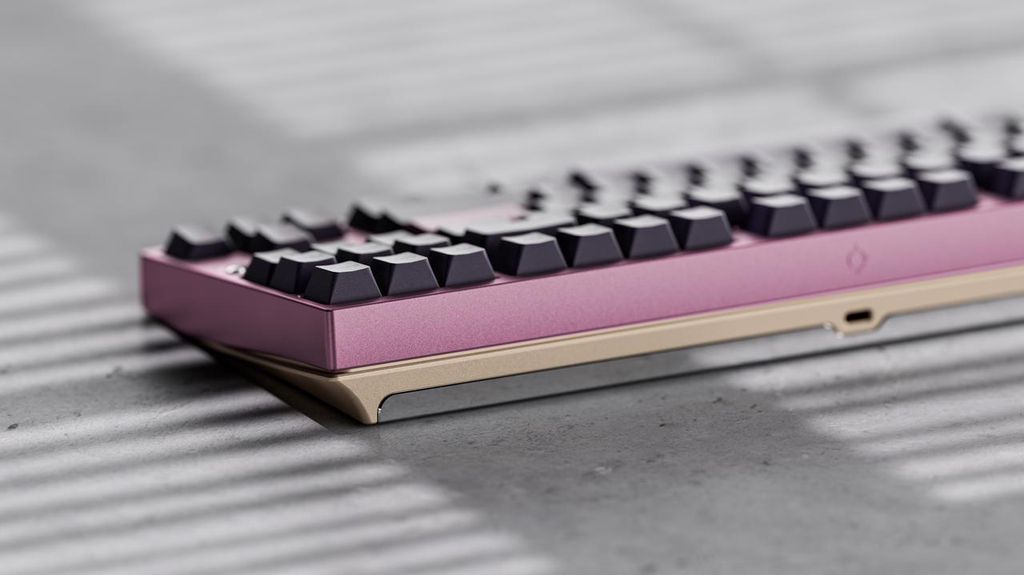

After the 75%, 60% and 65%, Neo is finally bringing the premium-value Cu treatment to the TKL layout. The Neo80 Cu is a truly hefty and premium beast, coming in around 4.5 kg after being built. This is a truly uncompromising practical daily driver that will make your desk shine.

For further information on the product, check it out at Neo's Notion Page.

Check the full configurator on QK's website here

Specs

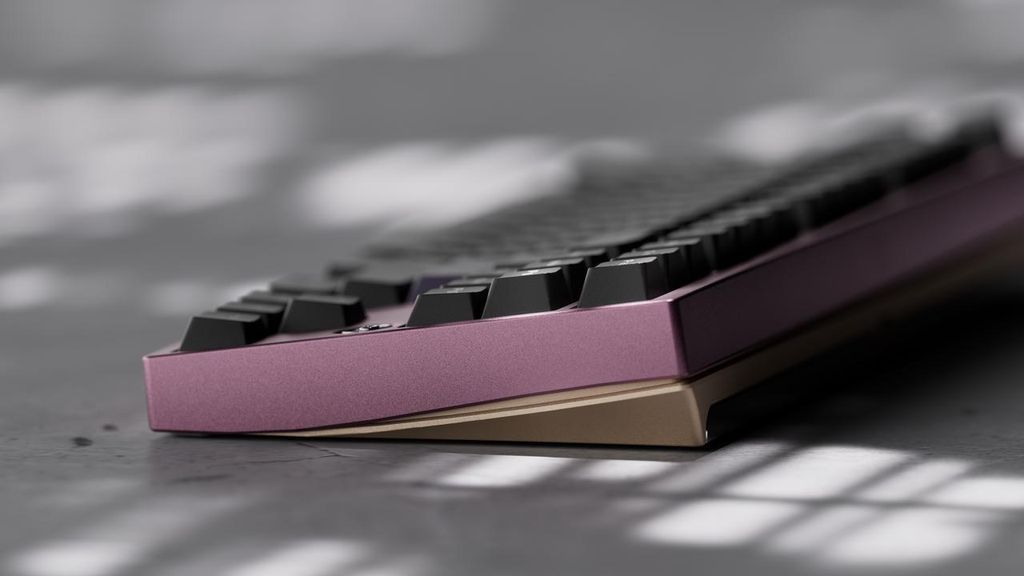

• Typing angle：8 degree
• Front height：18 mm
• Size：80% TKL, 355.5mm * 134 mm
• Layout: WK/WKL
• Weight： Around 4.5 kg after assembly

Tri-mode ANSI Hotswap PCB (Non-flex Cut)

• 1.6mm thick
• Support USB-C, Bluetooth, and 2.4GHz connection
• Support only ANSI layout
• NKRO
• Polling rate: 1000Hz in wired and 2.4GHz mode; 125Hz in BT mode
• NO Per-key RGB

Tri-mode ISO Hotswap PCB (Non-flex Cut)

• 1.6mm thick
• Support USB-C, Bluetooth, and 2.4GHz connection
• Support only ISO layout
• NKRO
• Polling rate: 1000Hz in wired and 2.4GHz mode; 125Hz in BT mode
• NO Per-key RGB

Wired Hotswap PCB (Non-flex Cut)

• 1.6mm thick
• USB-C connection only
• Support only ANSI layout
• NKRO
• Polling rate: 1000Hz
• NO Per-key RGB

Solder PCB (Non-flex Cut)

• 1.6mm thick
• Mill-max compatible
• USB-C connection only
• Support both ANSI and ISO layout
• NKRO
• Polling rate: 1000Hz
• NO Per-key RGB

Package Contents

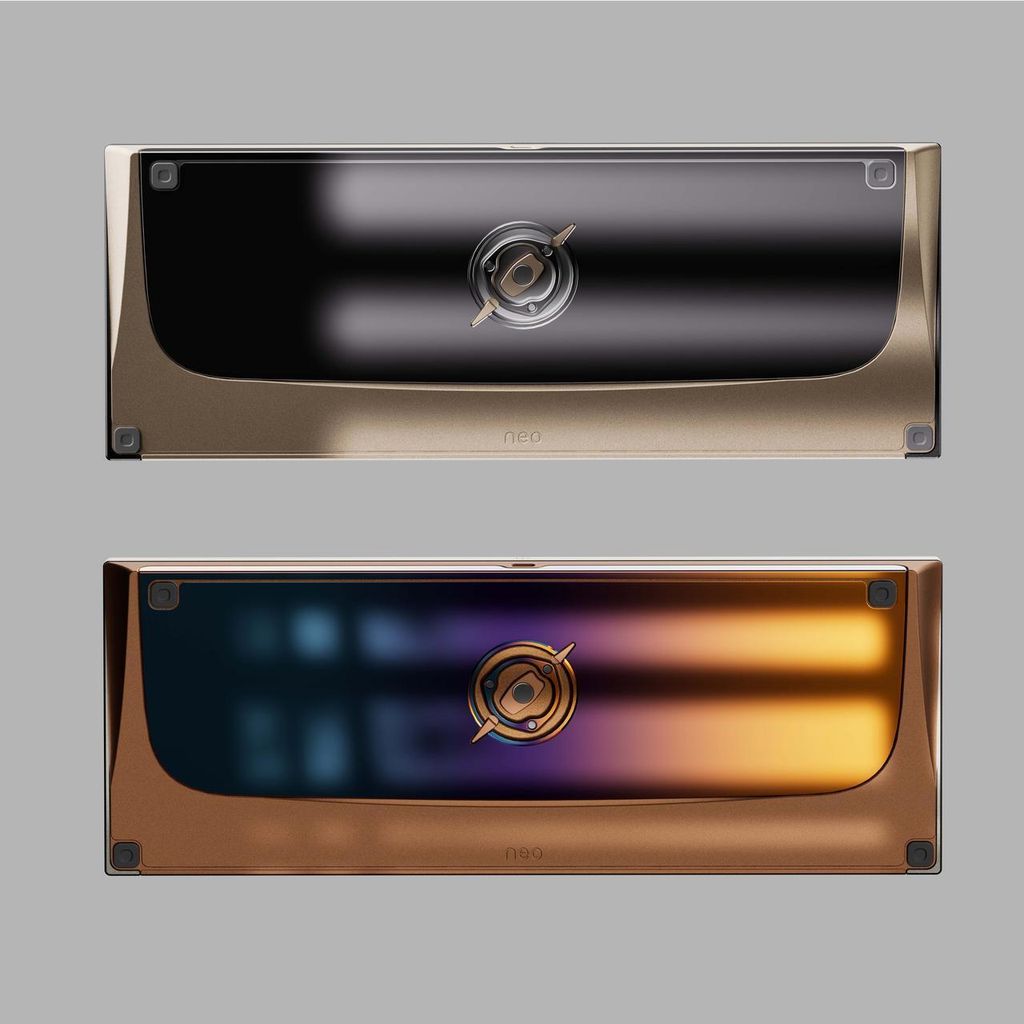

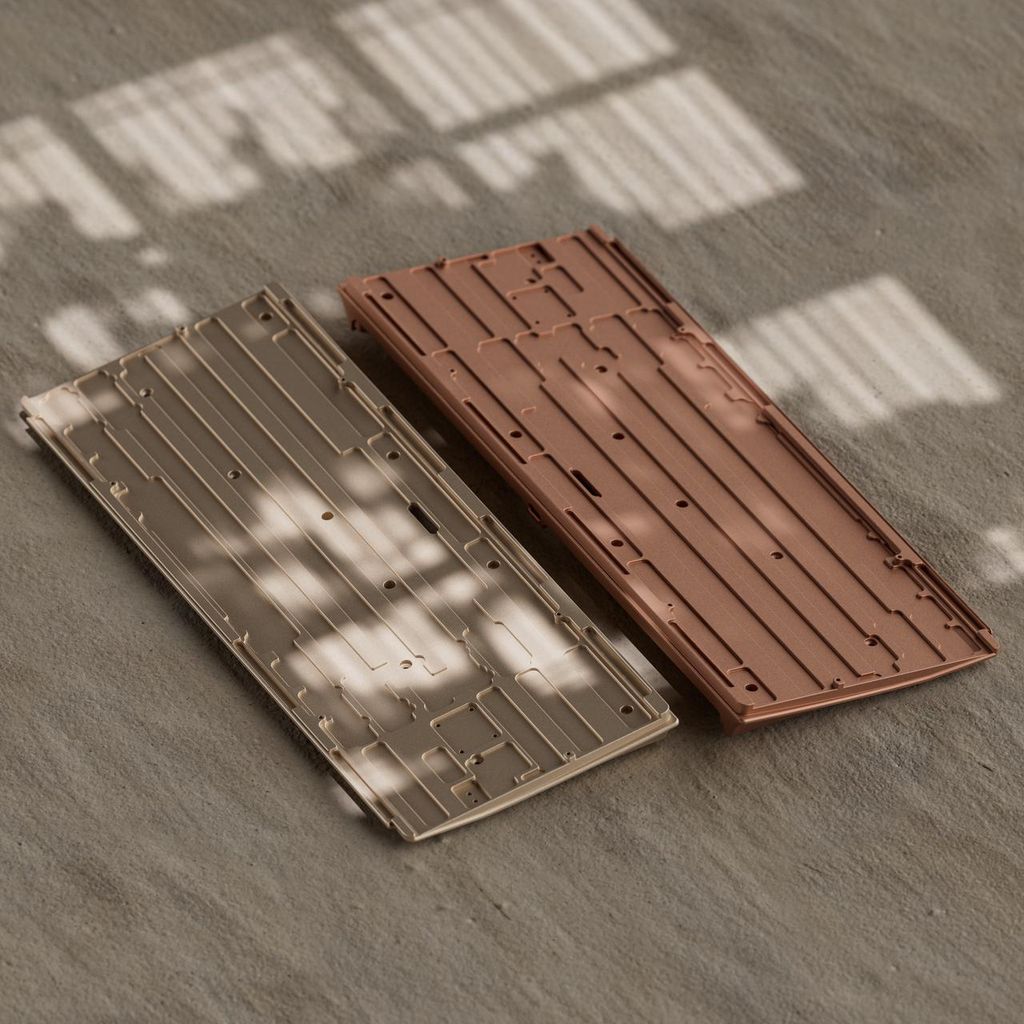

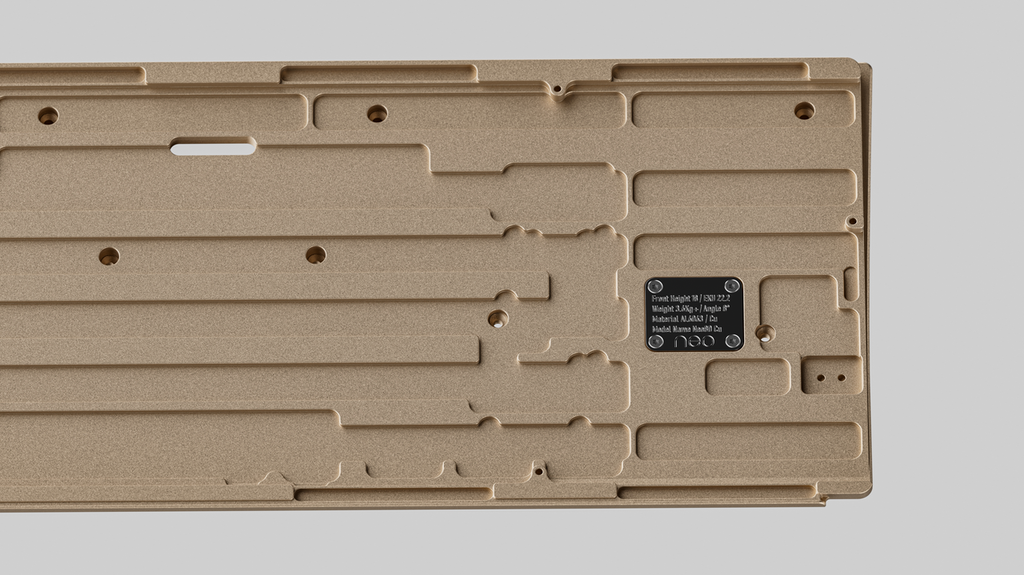

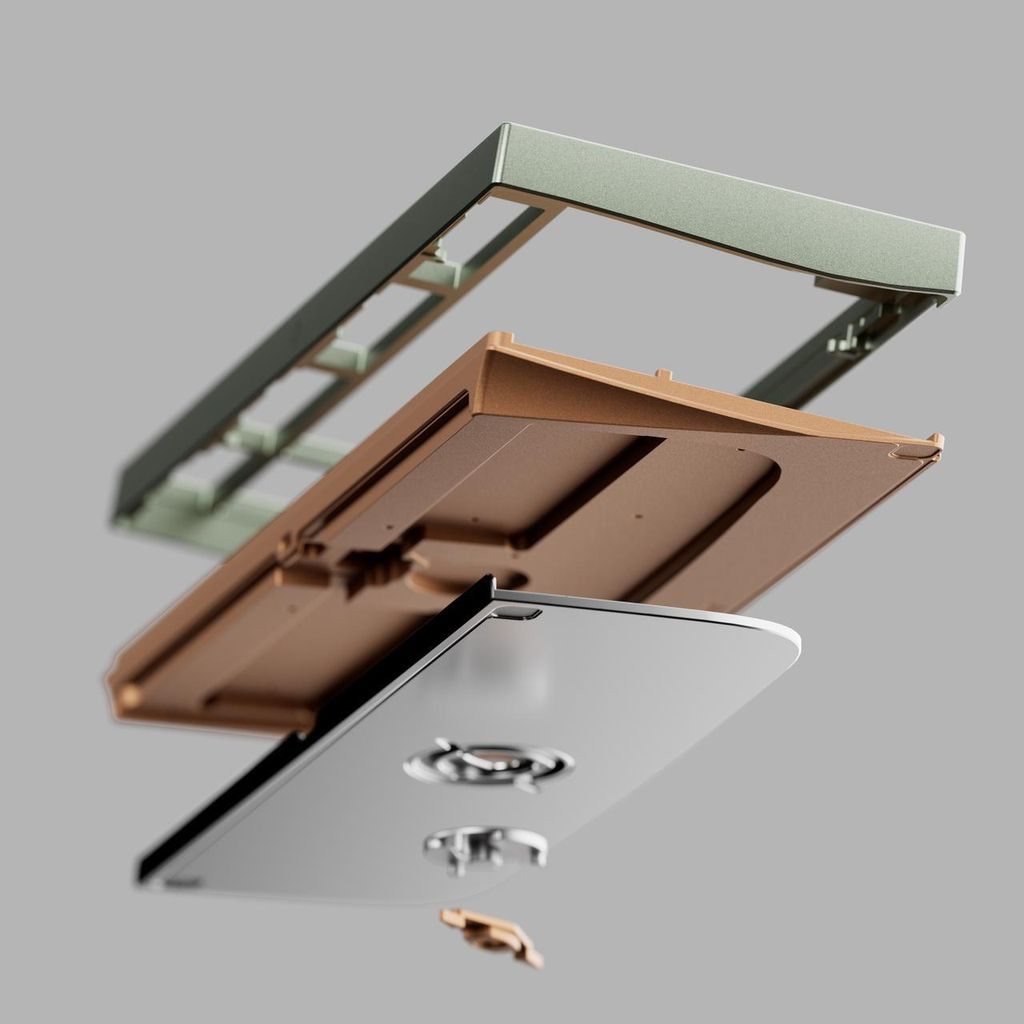

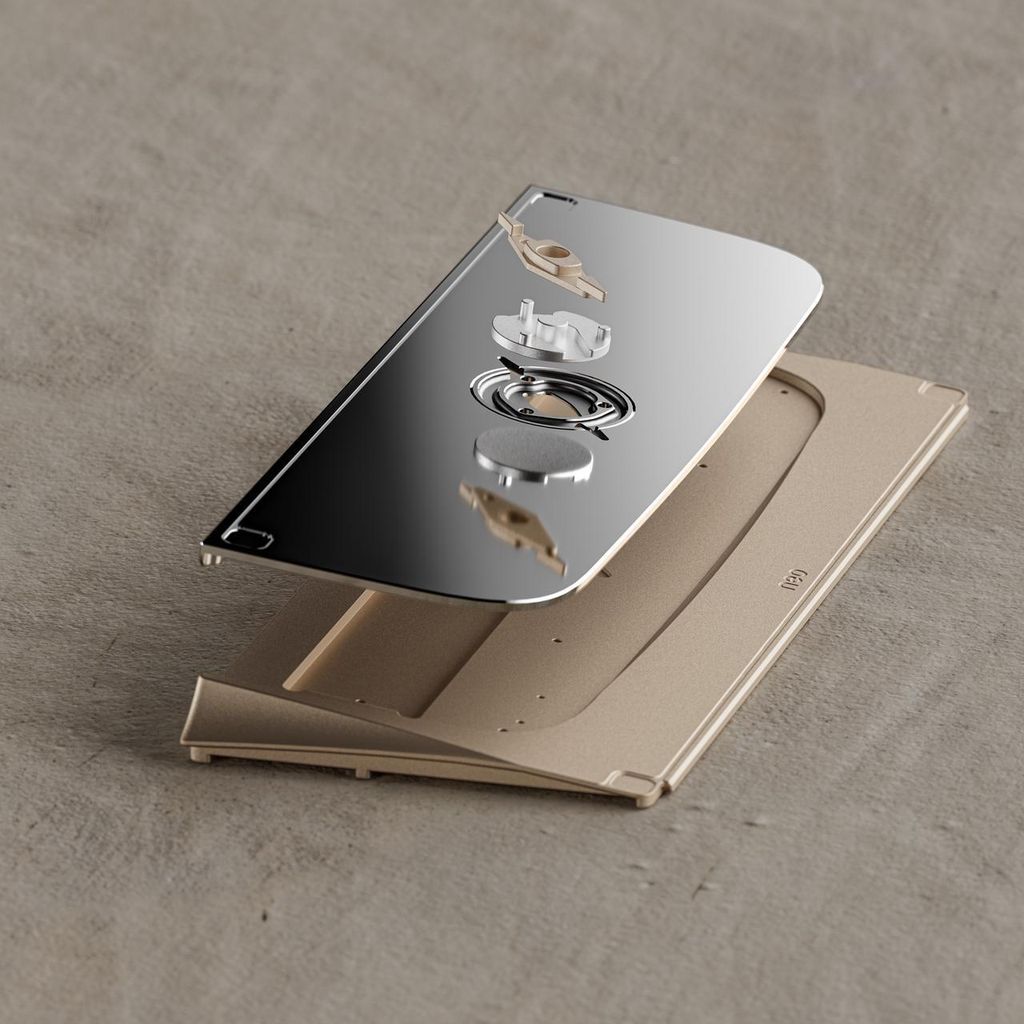

Keyboard Case

• For orders with tri-mode PCBs, two 2200 mAh batteries come pre-installed in the battery compartment
• For orders with wired PCBs, two stainless steel fillers come pre-installed in the battery compartment
• For orders with solder PCBs, two foam fillers come pre-installed in the battery compartment. （If you purchase the stainless steel battery compartment fillers in the extra part page, foam fillers will no longer be included.）

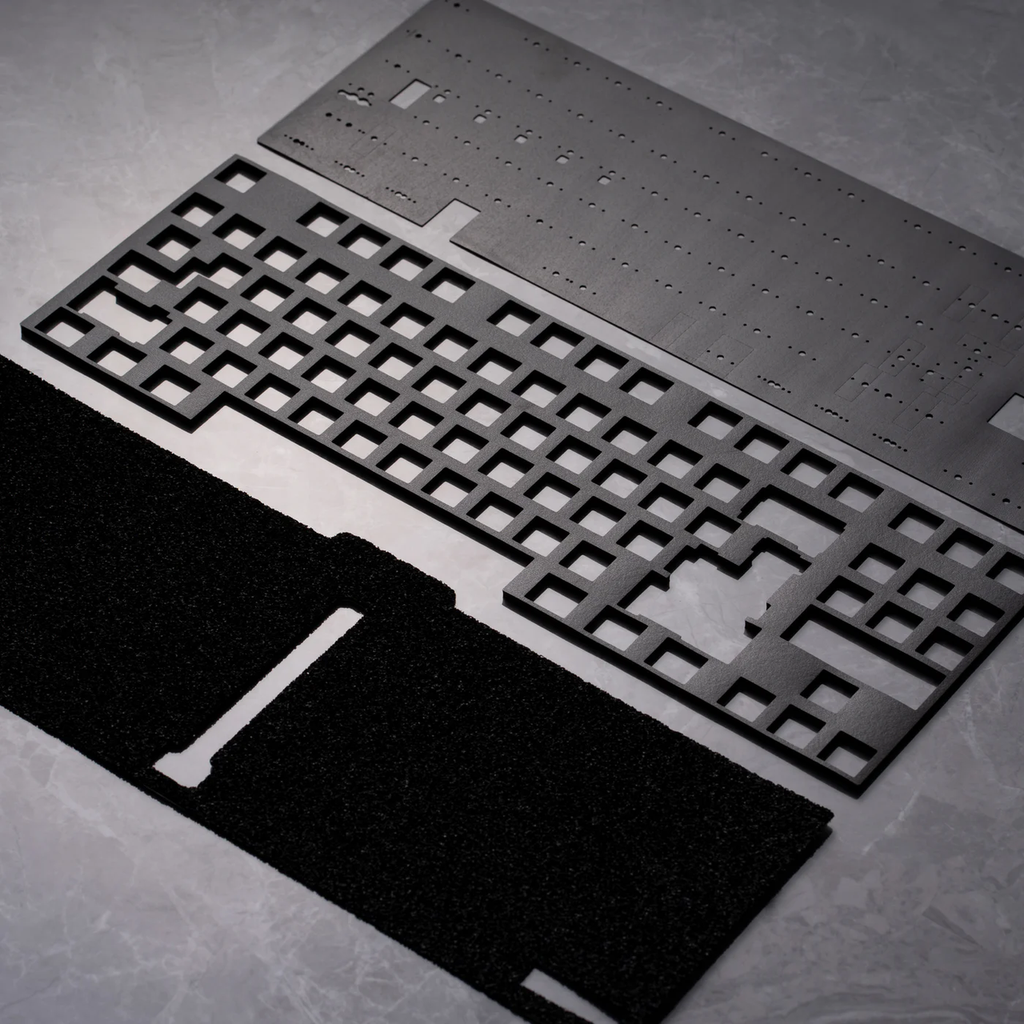

PCB kit

• PCB of your choice
• 1x PE sheet
• 1x PCB Foam
• Tri-mode PCB comes with a 2.4Ghz dongle

Plate of your choice

Poron case foam

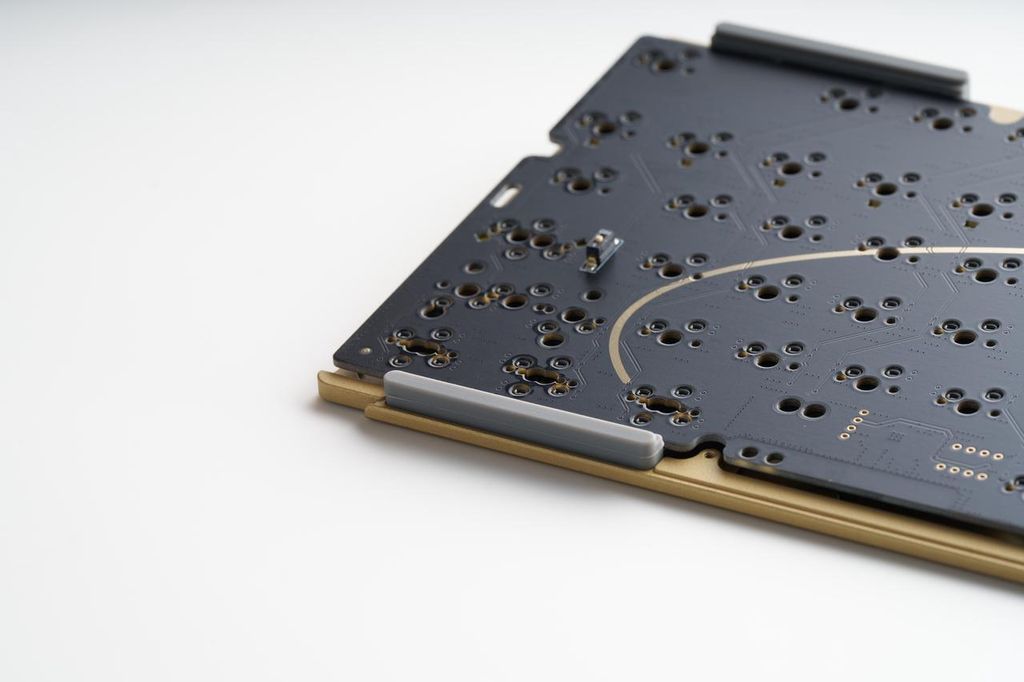

PCB Daughterboard and magnetic connectors - installed

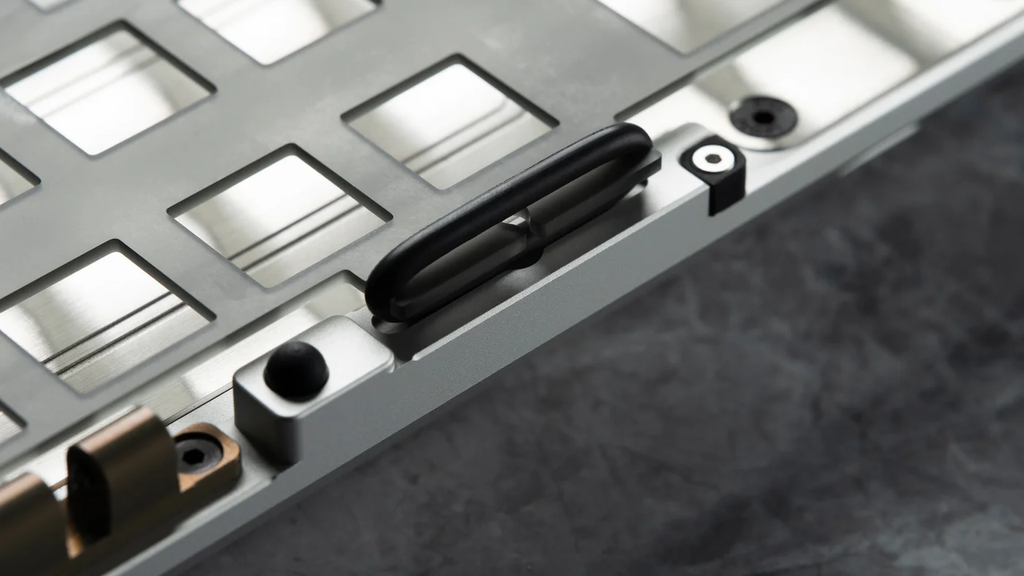

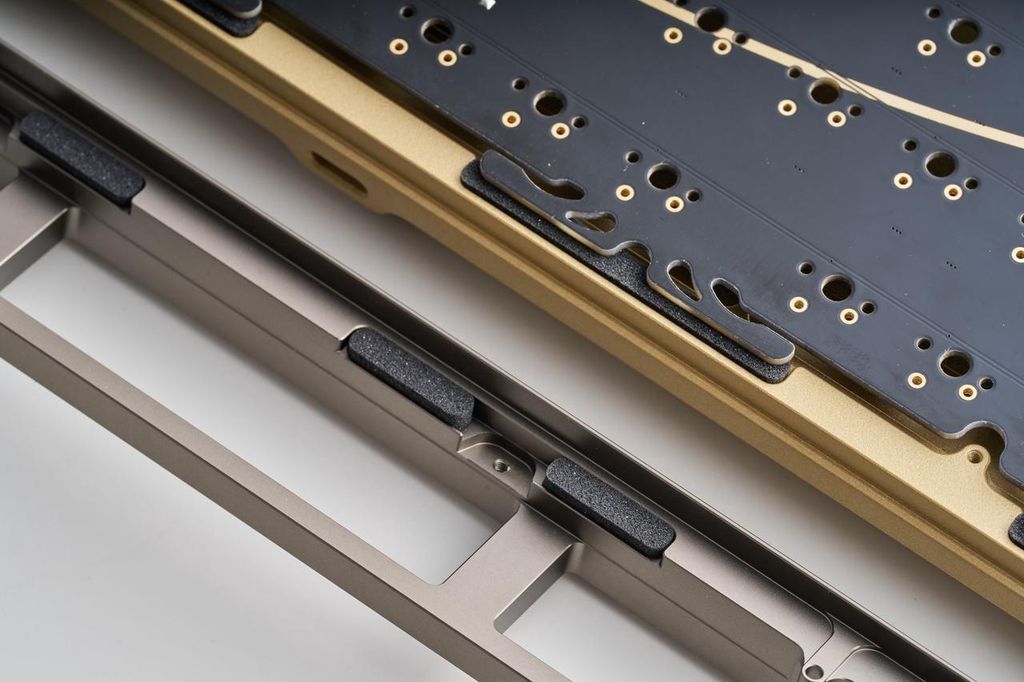

9x Silicone Gaskets, 9x long Poron gaskets, 18x short Poron gaskets and Top-mount mounting screws

4x Positioning silicone(grey)

Rubber feet in 2 colors

Backup screws

Free Gifts:（Disclaimer: If any of these gifts is missing or is damaged, they will not be re-shipped or replaced.）

• Keyboard carrying case
• Keyboard pouch
• 1x Keycap & Switch puller
• 1x Screwdriver
• 1 set of PCB clip-in NeoStab
• USB-C cable
