[In-Stock] Meletrix Boog75 - Magnetic Hall Effect Keyboard

RM 499.00
or

3 payments of RM 166.33  with

4 payments of RM 124.75  with

- +
icon-bag Add to Cart
Home

Details

HE Module is only compatible with the Zoom75

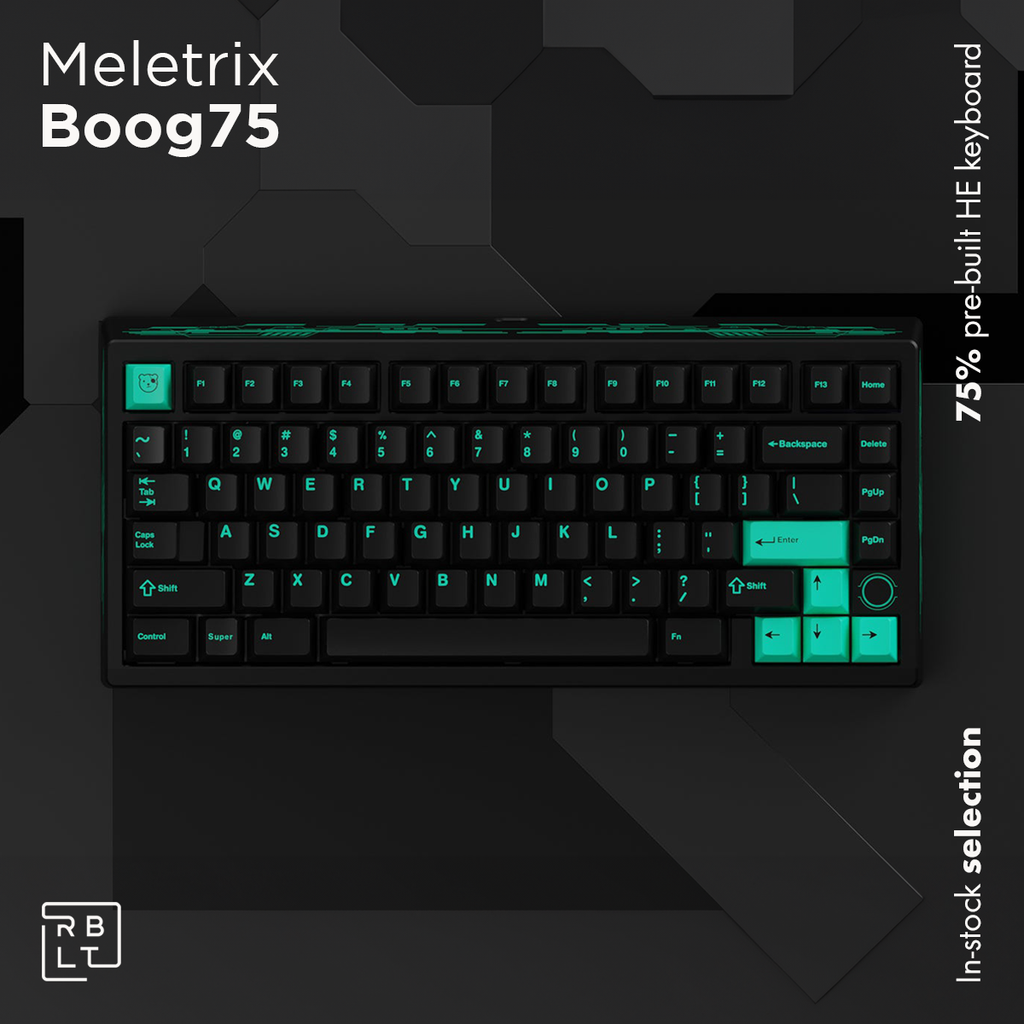

The Boog75 is a magnetic hall effect switch variant of the ever-so-popular Zoom75.

Available in both a Pre-Built or HE Module-only version, this means that you can get a keyboard that is ready-to-go, or you can purchase just the internals to be slotted into your existing Zoom75, making it a convenient yet impactful upgrade, especially if you're an FPS gamer or plays any other games that might benefit from rapid triggers!

Highlights

Adjustable Activation Point

Boog75 magnetic enables you to gain the upper hand in game.

The Boog75 enables key activation at distances as short as 0.1mm. You can customize the activation point for each key, ranging from 0.1mm to 4.0mm. Find the ideal key travel distance that suits you best.

Rapid Trigger

Utilizing the unique traits of magnetic switches, key activation and reset are determined by the distance traveled rather than fixed points. This precision enables keys to activate upon pressing and reset upon release, facilitating seamless consecutive key presses. This capability empowers you to swiftly execute a series of actions during gaming.

Robust Software

With a robust web-based software, it is easy to configure the Boog75 without needing to download any third party software.

From the Per-Key RGB, Rapid Trigger and more, you will be able to customize the Boog75 to your exact needs in the games that you enjoy.

On top of that, you can save up to 3 profiles, making it easy to have different profiles for different games and situations.


Specs

Keyboard Specifications:

  • Gasket Mount Design
  • 75% Layout
  • PCB: 1.6mm, with Ai03 DB
  • 5° Typing angle
  • 22.14 mm front height
  • Dimension: 323.6 x 145.78 x 34.73 (mm)
  • Default plate: Alu
  • Case Material: 6063 Aluminum
  • Case Finish: Anodized+Infill (No Sparkles, No Chamfer)
  • Backplate and External Weight: Anodized+Infill
  • Switches Type: Gateron KS37B
  • The Orientation of the Switches: North Facing
  • No SS Internal Weight
  • Boog 75 Wired Polling Rate: 1000hz
  • QMK or VIA Support: No, customization requires to use of our independent driver.
  • Total weight: About 3kg

Keycap Specifications:

  • Manufacturer: WS PBT
  • Keycap Material: Doubleshot PBT
  • Keycap Thickness: 1.6mm
  • Keycap Profile: Cherry
  • Keys QTY: 81 keys

Switch Specifications:

  • Product Name: GATERON KS-37B Magnetic Hall Sensor Keyboard Switch
  • Initial Force:30±10gf.
  • Total travel:4.0±0.2mm.
  • Operation Lifetime:150,000,000 Cycles.
  • Bottom Force: 50±10gf.
  • Top Housing Material: Thermoplastic, Transparent
  • Bottom Housing Material: Thermoplastic, Red
  • Stem Material: Thermoplastic, Red
  • Spring Material: Stainless steel


Package Contents

Pre-Built Contents:

Fully Assembled Keyboard, including:

  1. Top and bottom cases
  2. HE Module(Magnetic Switch, Plate, Gasket, Sound absorbing foam, and PCB)
  3. Case foam
  4. The themed keycaps
  5. Tool accessories


HE Module Contents:

  • No keycaps, No case
  • Magnetic Switch
  • Alu Plate
  • Poron Pad
  • PCB
  • Factory Lubed Stabilizers
